Machinery

Machine

  • ​ New Slitting Machine
  • {Order Manufacturing Opportunity available}

  • ​@ Plastic Film Slitter Re-winder Available
    @ Polyester Film Yarn Micro Slitter + Re-winder - Feeder. Full Company Unite Available​

Machine Specifications:

    • Material Type: BOPP, CPP, PET, PVC, PE, PP, Laminated Films

    • Working Width: 1000mm – 2100mm (Customizable)

    • Mother Roll Diameter: Up to 1000mm

    • Rewind Diameter: Up to 600mm

    • Slitting Thickness Range: 12 – 250 Micron

    • Slitting Speed: 300 – 600 m/min

    • Slitting Type: Razor Blade / Circular Knife

    • Unwinding System: Shaftless / Hydraulic Loading

    • Tension Control: Automatic PLC Controlled

    • Edge Guiding System: EPC (Edge Position Control)

    • Motor: AC Inverter Motor / Servo Motor

    • Power Supply: 380V / 415V / 440V – 3 Phase

    • Control Panel: PLC + Touch Screen Interface

    • Optional: Auto Meter Counter, Trim Removal System, Air Shaft



Machine Specifications:

  • Material: Polyester Film Yarn / PET Yarn

  • Micro Slitting Width: 1mm – 20mm

  • Working Width: 500mm – 1600mm

  • Slitting Precision: ±0.1mm

  • Production Speed: 200 – 500 m/min

  • Feeding System: Automatic Tension Feeder

  • Rewinding Type: Surface / Center Rewind

  • Tension Control: Independent Tension System

  • Control System: PLC + Servo Control

  • Full Production Line Available: Slitter + Rewinder + Feeder + Winder Unit

  • Customization: Available as per the customer's product requirement

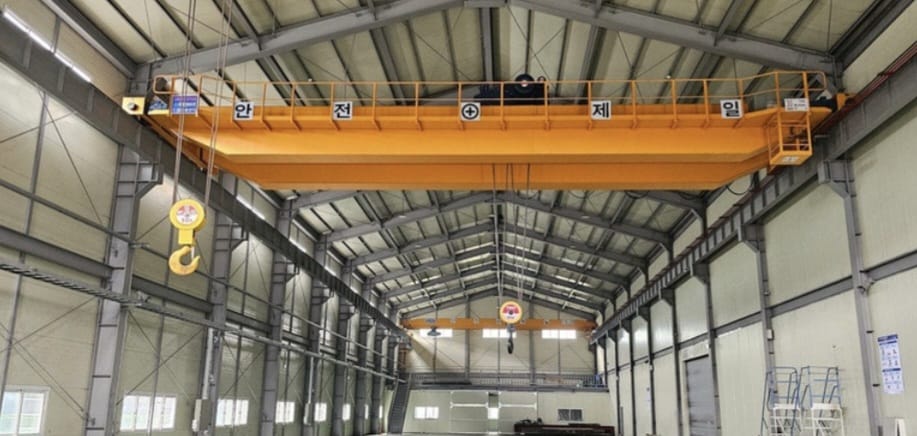

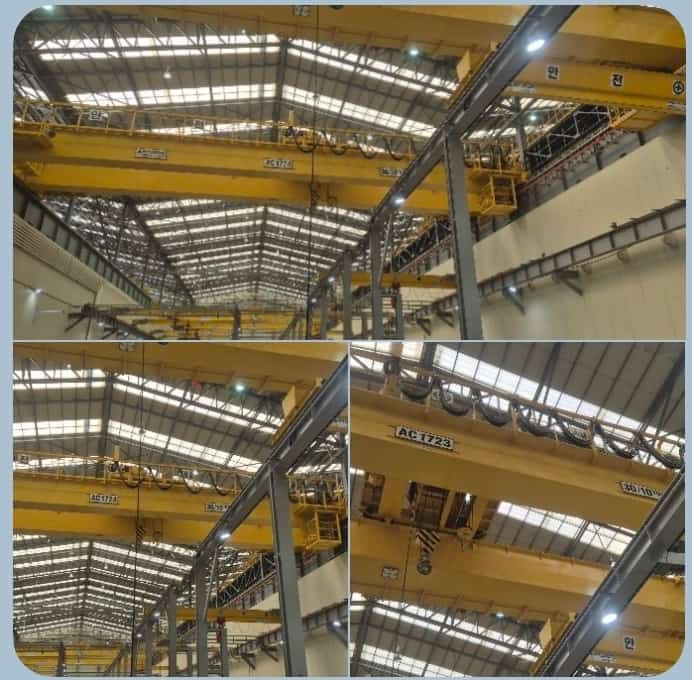

Hoist Crane

  • ​ Hoist Crane

  • Product Specifications

    • Lifting Capacity: 5 Ton, 10 Ton, 15 Ton, 20 Ton, 25 Ton, 30 Ton

    • Type: Electric Wire Rope Hoist / Chain Hoist

    • Operation: Electric / Remote Control

    • Voltage: 220V / 380V / 415V / 440V (Customizable)

    • Lifting Height: 6m – 30m (Customizable)

    • Duty Class: M3 – M5 (Heavy Duty Industrial Grade)

    • Structure: Single Girder / Double Girder Compatible

    • Safety Features: Overload Protection, Emergency Stop, Limit Switch

    • Condition: New / Industrial Stock (as per requirement)

    • Origin: Korea / Japan / China / (as per order)

  • Regular Supply as per your Order
  • That Crans come from Industries
